UV-1800 Touch Screen LCD Uv Vis Instrument Macy Lab C-T Type Parallel

Name: UV1800 Touch Screen LCD Uv Vis Instrument Macy Lab CT Type Parallel
Brand: Macylab
Price: 1 USD

Brand Name : Macylab

Model Number : UV-1800

Certification : ALL OF MADE IN CHINA

Place of Origin : CHINA

MOQ : 1

Price : TALK ABOUT IT

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 120SET/DAY

Delivery Time : Within 5 days

Packaging Details : PE film then pur into wooden carton

Product Name : UV-1800

Key Words : Double Beam UV-VIS spectrophotometer

Optical System : Double beam

Optical circuit structure : C-T Type Parallel double beam

Noise : ± 0.0002A @500nm

Photometric Display Range : -4～4A

Wavelength Range : 190～1100nm

Wavelength Accuracy : ±0.3nm

Detector : Import Silicon Photodiod

Display Mode : 6 inches high brightness blue LCD

Contact Now

UV-1800

Product description, technical parameters and configuration

●UV-1800cpc successfully achieved the stringent requirements of high accuracy and reliability measurement to meet the requirements of various applications that can be used in biological research, bio-industry , pharmaceutical analysis , pharmaceutical, teaching and research, environmental protection , food hygiene, clinical examination , health and epidemic prevention and other fields.

●A wide wavelength range, the wavelength range to meet the various requirements of the field

●4nm, 2nm, 1nm, 0.5nm spectral bandwidth of four customized according to user requirements can be installed to meet the stringent requirements of the Pharmacopoeia

●Automatic design to achieve the most simple means of measurement

●LSI design greatly improves the scalability and reliability of the system

●Improved optimization of the optical design , import source and receiver system created a high performance and high reliability

●Rich measurement methods , with a wavelength scan , time scan , multi-wavelength determination , multi-order derivative determination (optional ) , dual-wavelength , three-wavelength (optional ) DNA protein measurements (optional ) , and other measurement methods to meet different measurement requirements , and can be displayed directly on a 10 inches touch screen LCD

●Based on user requirements optional hole rack , manual four with stand , manual Eighth rack , automatic Eighth frame, glass stand , test tube rack , 1cm colorimetric frame , 5cm colorimetric frame , 10cm colorimetric racks

●Measurement data can be output through the printer with USB interface

●Can be powered down to save the measurement parameters and data , user-friendly

Exhibition:

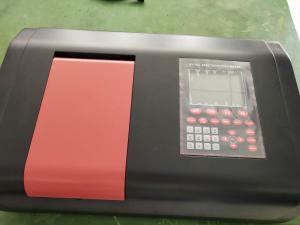

UV-1800 Touch Screen LCD Uv Vis Instrument Macy Lab C-T Type Parallel

Technical Specifications

Model UV1800CPC
Optical System Double beam
Optical circuit structure C-T Type Parallel double beam
Wavelength Range 190～1100nm
Band Width 1.8nm
Wavelength Accuracy ±0.3nm
Wavelength Repeatability ≤0.1nm
Photometric Accuracy ±0.3% τ(0-100%τ) ±0.002A(0～0.5A) ±0.003A(0.5A～1A)
Photometric Repeatability 0.15% τ(0-100%τ) ±0.001A(0～0.5A) ±0.0015A(0.5A～1A)
Stray Light ≤0.02% τ (220nm NaI,340nm NaNO2)
Stability 0.0005A/h@500nm
Noise ± 0.0002A @500nm
Baseline Flatness ± 0.001A
Photometric Mode T,A,C,E
Wavelength Setting Automatic
Photometric Display Range -4～4A
Display Mode 10 inches touch screen LCD
Detector Import Silicon Photodiode
Light Source Import Deuterium Lamp & Tungsten Halogen Lamp
Power Requirement AC 220V/50Hz 110V/60Hz
Power 120W
Dimensions(W*D*H) 560×450×230mm
Weight 28Kg
